Non-Destructive Testing (NDT) plays a critical role in ensuring the structural integrity and reliability of materials and components in industries such as aerospace, automotive, construction, and oil & gas. Over the years, various NDT techniques have evolved, ranging from radiographic testing (RT) and magnetic particle inspection (MPI) to more advanced solutions like portable ultrasonic flaw detectors. With the growing need for portable ultrasonic testing equipment, professionals are increasingly favoring ultrasonic testing (UT) over traditional NDT methods due to its accuracy, efficiency, and ease of use.
But how does a portable ultrasonic flaw detector compare to traditional NDT techniques? Which method provides the best balance between efficiency, cost, and accuracy? This article provides a detailed comparison to help you make an informed decision.
What is a Portable Ultrasonic Flaw Detector?

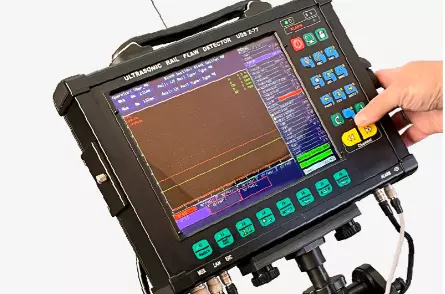

A portable ultrasonic flaw detector is an advanced NDT device designed to identify internal flaws, discontinuities, and material thickness variations without causing damage. It uses high-frequency sound waves to detect and analyze defects, offering real-time data to inspectors.
Key Features of Portable Ultrasonic Flaw Detectors
- Compact and lightweight design for field inspections.
- High-resolution digital displays for clear defect visualization.
- Real-time data analysis and reporting capabilities.
- Advanced probes and transducers for precise flaw detection.
- Battery-powered operation for improved portability and efficiency in remote locations.
- Data storage and wireless connectivity for easy documentation and report generation.
Now, let’s compare portable ultrasonic testing equipment with traditional NDT methods to see which one truly excels.
Traditional NDT Methods: An Overview
Traditional NDT methods have been widely used for decades to inspect materials and structures. The most common methods include:
1. Radiographic Testing (RT)
This method uses X-rays or gamma rays to detect internal defects. The radiation passes through the material and captures an image on film or digital detectors.
- Pros: High accuracy for detecting internal voids and cracks.
- Cons: Expensive, requires safety precautions due to radiation exposure, and is time-consuming.
2. Magnetic Particle Inspection (MPI)
Used primarily for detecting surface and near-surface defects in ferromagnetic materials. A magnetic field is applied to the component, and iron particles reveal flaws by forming visible patterns.
- Pros: Effective for surface defect detection, low cost.
- Cons: Limited to ferromagnetic materials, unable to detect deep-seated defects.
3. Liquid Penetrant Testing (LPT)
This method involves applying a liquid penetrant to the surface, which seeps into defects. A developer is then applied to make cracks visible under UV or white light.
- Pros: Simple and cost-effective for surface defect detection.
- Cons: Cannot detect subsurface flaws, requires extensive cleaning.
4. Eddy Current Testing (ECT)
Uses electromagnetic fields to detect surface and near-surface defects in conductive materials.
- Pros: Fast, can be automated for mass inspections.
- Cons: Limited to conductive materials, less effective for deep defect detection.
Now, let’s analyze how portable ultrasonic testing equipment compares to these traditional techniques.
Portable Ultrasonic Flaw Detector vs. Traditional NDT Methods
1. Detection Capabilities
- Portable Ultrasonic Flaw Detector: Capable of detecting both surface and deep internal defects in a wide range of materials, including metals, plastics, and composites.
- Traditional NDT Methods: Methods like MPI and LPT are limited to surface defects, while RT and ECT are restricted to specific material types.
- Winner: Portable Ultrasonic Flaw Detector – Offers comprehensive detection capabilities for both surface and subsurface flaws.
2. Accuracy and Reliability
- Portable Ultrasonic Flaw Detector: Provides real-time, high-resolution imaging with precise measurements.
- Traditional NDT Methods: RT is highly accurate but requires film processing, making it slower. MPI and LPT rely on human interpretation, leading to potential inconsistencies.
- Winner: Portable Ultrasonic Flaw Detector – Delivers faster, more accurate results with minimal human error.
3. Portability and Field Usability
- Portable Ultrasonic Flaw Detector: Designed for on-site and field inspections, eliminating the need for large testing setups.
- Traditional NDT Methods: RT and ECT require heavy and stationary equipment, making field use challenging.
- Winner: Portable Ultrasonic Flaw Detector – Ideal for mobile and field-based inspections.
4. Safety and Environmental Impact
- Portable Ultrasonic Flaw Detector: Safe to use without harmful radiation or chemicals.
- Traditional NDT Methods: RT involves radiation hazards, while LPT uses chemical penetrants that require disposal.
- Winner: Portable Ultrasonic Flaw Detector – No health or environmental risks associated.
5. Cost-Effectiveness
- Portable Ultrasonic Flaw Detector: Although the initial investment may be high, the long-term savings in efficiency, portability, and reduced downtime make it cost-effective.
- Traditional NDT Methods: RT and ECT require expensive equipment and specialized training. LPT and MPI may seem cost-effective initially but require regular consumables and extensive cleanup.
- Winner: Portable Ultrasonic Flaw Detector – Offers a better return on investment over time.
6. Application Versatility
- Portable Ultrasonic Flaw Detector: Can be used for weld inspections, pipeline testing, aerospace structures, automotive components, and heavy machinery.
- Traditional NDT Methods: Each method has limitations. MPI is for ferromagnetic materials, LPT is for non-porous surfaces, and RT is mainly used for thick materials.
- Winner: Portable Ultrasonic Flaw Detector – Works across multiple industries and applications.
Future of Ultrasonic Testing in NDT
With advancements in AI integration, wireless connectivity, and automated scanning, portable ultrasonic testing equipment is becoming more sophisticated. Future developments in this technology will further enhance precision, speed, and ease of use, making it an industry standard for flaw detection.
Conclusion: Which One Wins?
After comparing portable ultrasonic flaw detectors with traditional NDT methods, it’s clear that ultrasonic testing outperforms other methods in key areas like accuracy, portability, safety, and versatility. While traditional NDT methods still hold value in specific applications, the growing demand for portable ultrasonic testing equipment is reshaping the industry by offering faster, safer, and more efficient flaw detection solutions.
If you’re looking for a reliable, all-in-one solution for non-destructive testing, investing in a portable ultrasonic flaw detector is a smart choice. Whether you’re working in aerospace, oil & gas, automotive, or structural engineering, ultrasonic testing provides the precision and efficiency needed to maintain quality and safety.
Would you like recommendations on the best portable ultrasonic flaw detectors available today? Let us know, and we can help you choose the perfect model for your industry-specific needs!
